In recent years, with the technological innovation in the field of autonomous driving and the development of electric vehicles, the demand for connectors in the automotive field is increasing. Vehicle-mounted connectors require high heat resistance and high vibration resistance and other high vehicle-mounted quality.
This special topic will introduce 10 series of board to line, interface, board to board and board to FPC/FFC connectors that Hirose electric is proud of, which are most suitable for various on-board applications.

1
ZE05 series
Corresponding to 125℃, high vibration resistance, small board-to-wire connector
Enhanced vibration resistance, ensure use in 8.9G environment, use in the engine compartment. The terminal small ears are size 0.5 /2mm pitch space saving design to facilitate the miniaturization of components.

2

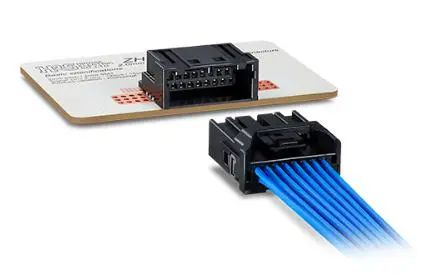

ZH05 series
Prevent short circuit and electric shock construction, board - to - wire connector
In addition to the high temperature 125℃, high vibration resistance of the vehicle quality, but also to prevent foreign bodies caused by the short circuit and staff electric shock structure.

3
ZE064W series
Corresponding to 125℃, the interface with high vibration resistance small waterproof connector
Enhanced vibration resistance, ensure use in 8.9G environment, use in the engine compartment. The plate thickness and length of the parent terminal are as thin and short as possible, successfully achieving 80% miniaturization compared with similar products of other companies.

4
FX26 series
Support 140℃, vibration resistant structure, floating structure connector
The FX26 series is designed to be used even in the engine compartment and developed to support 140℃ high quality gauge connectors.

5
GT50 series
1mm pitch, small, heat/vibration resistant, board-to-wire connector
Connectors that are small and achieve high robustness. By working hard on the shape and material of the terminal, it has high vibration resistance and 125℃ heat resistance, which is very suitable for on-board applications.

6

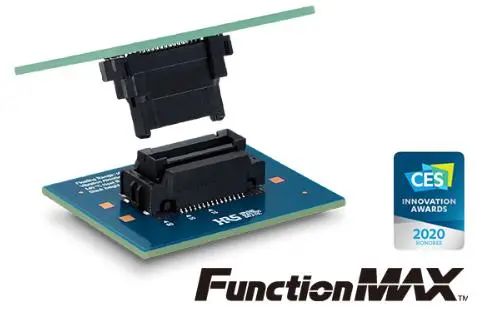

DF40T/DF40GT series
Board - to - board FPC connectors with heat resistance, contact reliability and fastness
Support 16Gbps high-speed transmission
DF40T series connectors are ideal for applications requiring high reliability. The DF40GT has a shield plate on one side of the socket to suppress electromagnetic interference.

7

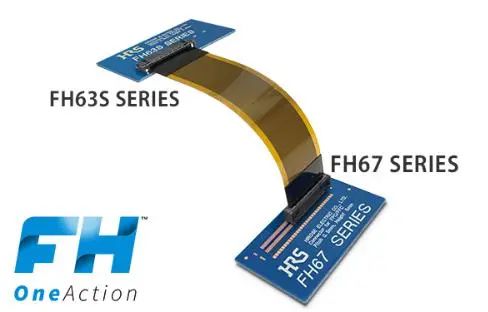

FH63S/FH67 series
One plug locks the FPC/FFC connector
No locking rod operation,FPC can be inserted to complete the "one plug is locked", so that the operation has been improved by leaps.

8

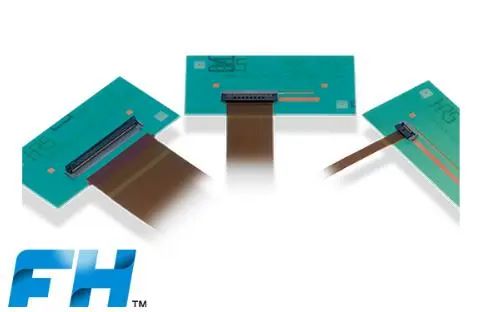

FH52K series
High reliability
Universal FPC/FFC connector
FH52K is the best selling FPC/FFC connector FH52 series with high heat resistance。

9

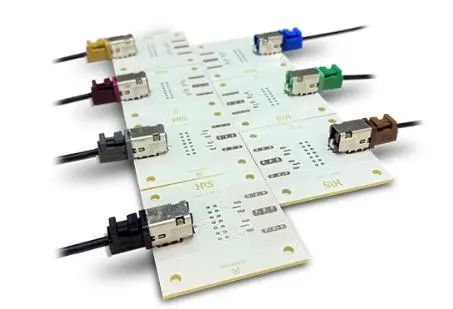

GT43 series
Corresponding LVDS, shielded coaxial connector
Small volume and through a variety of noise tests, with stable communication performance. Supports 3GHz high frequency connector. A variety of colors and buttons can be selected according to the purpose.

10

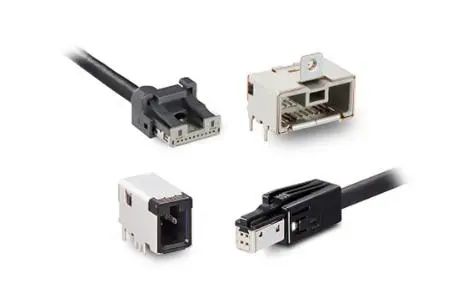

GT32 series
Shielded connectors for high-speed vehicle-mounted transmission
Fully shielded structure, supporting high speed transmission up to 2.2Gbps. Through stringent on-board requirements to ensure a high degree of reliability to withstand harsh environments. This connector is ideal for on-board equipment.

Autonomous Driving · ADAS application examples and recommended connector

* As for suitable on-board connectors requiring high reliability, we will introduce suitable products for you according to actual use, please consult our customer service for details.
